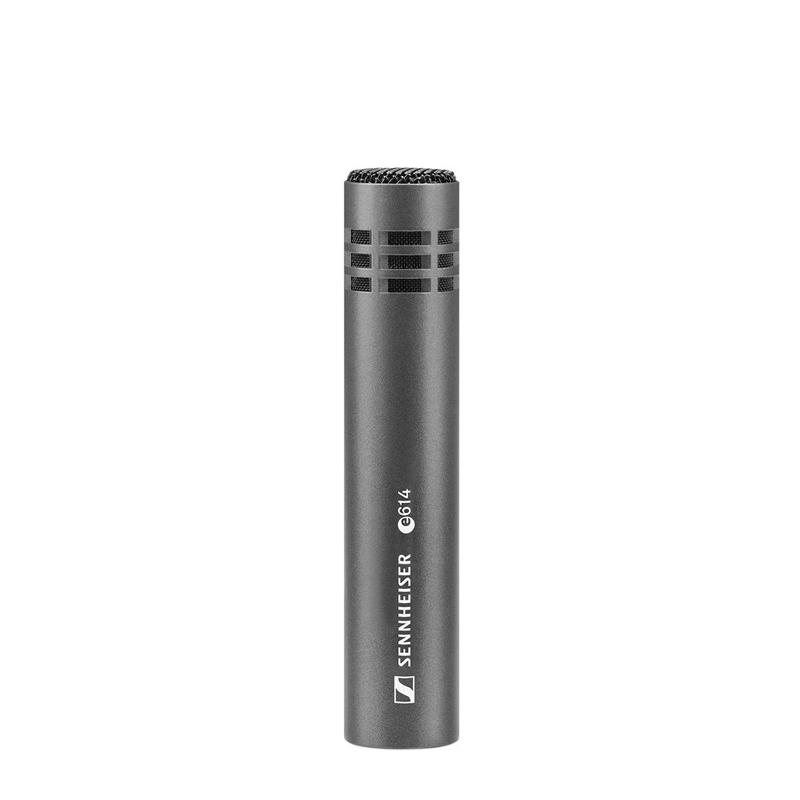

Sennheiser e 614 Small-diaphragm Condenser Instrument Microphone # 009895

Extremely wide frequency range. Focused pick-up. Outstanding transient response. As a condenser microphone, the e 614 convinces in demanding scenarios with a natural, full sound. Its wide frequency range captures nearly every instrument; its extraordinary dynamics conjure fine nuances from the air, giving them space and depth.

Thanks to the precise directivity, the e 614 safely reduces the bleed from other instruments on stage or in the studio. With its high maximum sound pressure level, it is especially designed for percussion and as an overhead mic, but also effortlessly supports stringed and woodwind instruments.

• Dimensions: Ø 20mm, L = 100mm
• Weight: w/o cable: 73 g
• Min. terminating impedance: 1000 Ω
• Connector: XLR-3
• Pick-up pattern: super-cardioid
• Phantom powering: 12 - 52 V / 3 mA
• Frequency response: 40 - 20000 Hz
• Sensitivity in free field, no load (1kHz): 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
• Equivalent noise level: 24 dB(A)
• Transducer principle: pre-polarised condenser microphone
• Nominal impedance: 50 Ω
• Equivalent noise level weighted as per CCIR: 35 dB
• Maximum sound pressure level (passive): 139 dB/SPL
