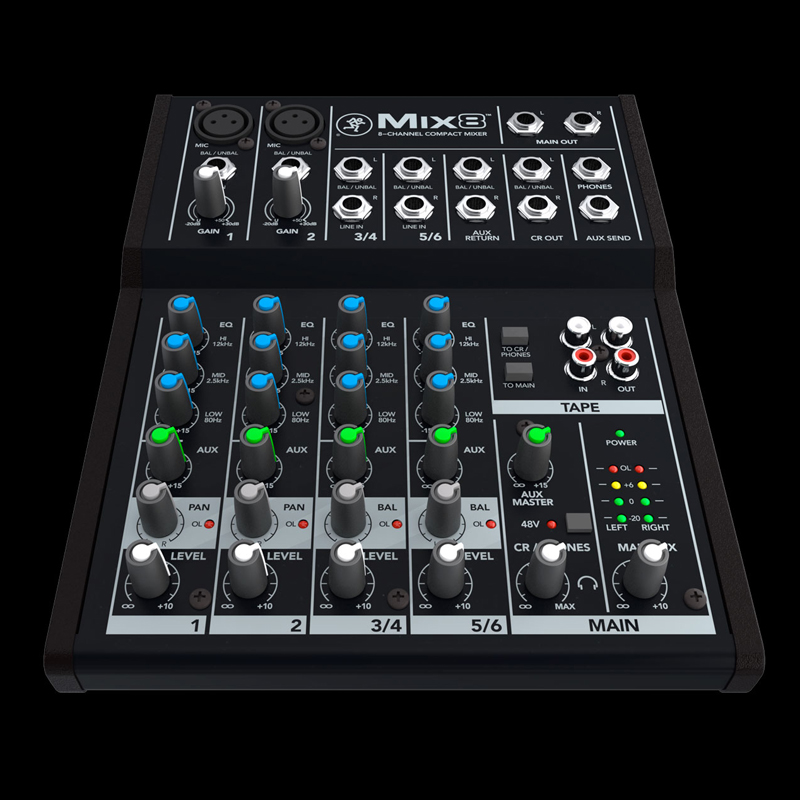

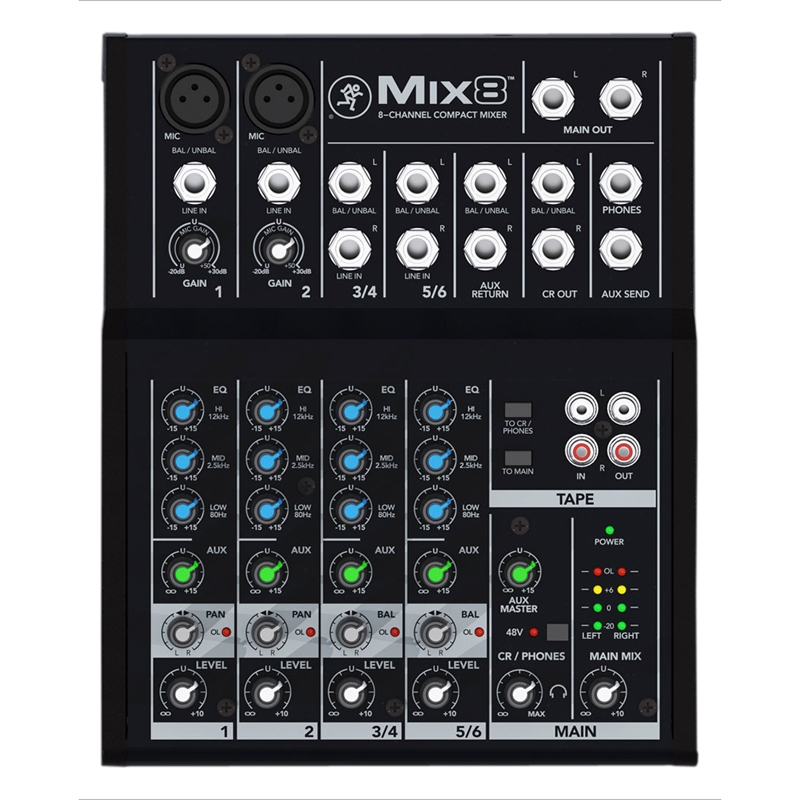

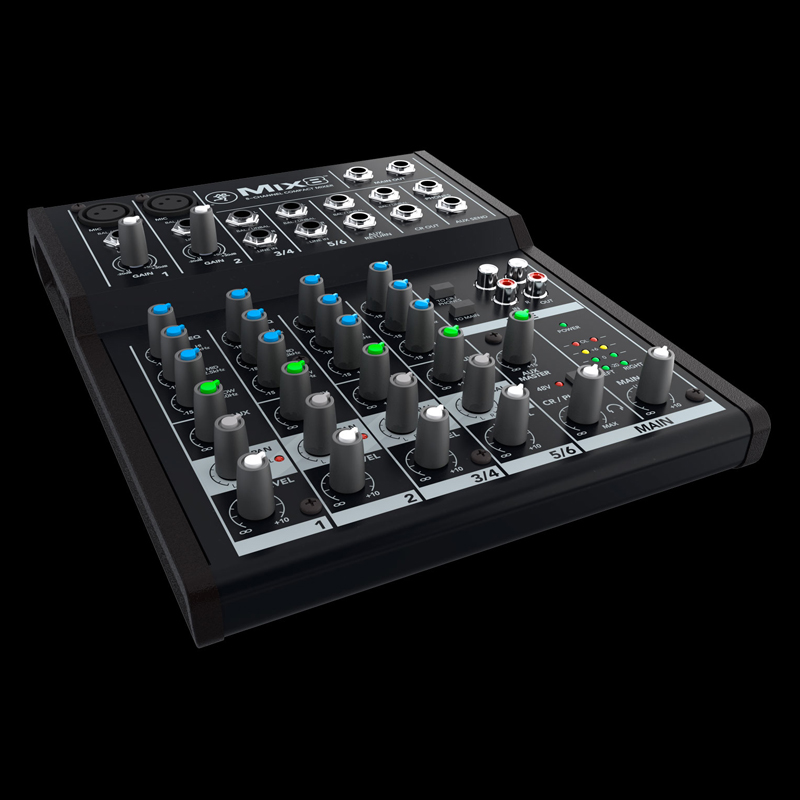

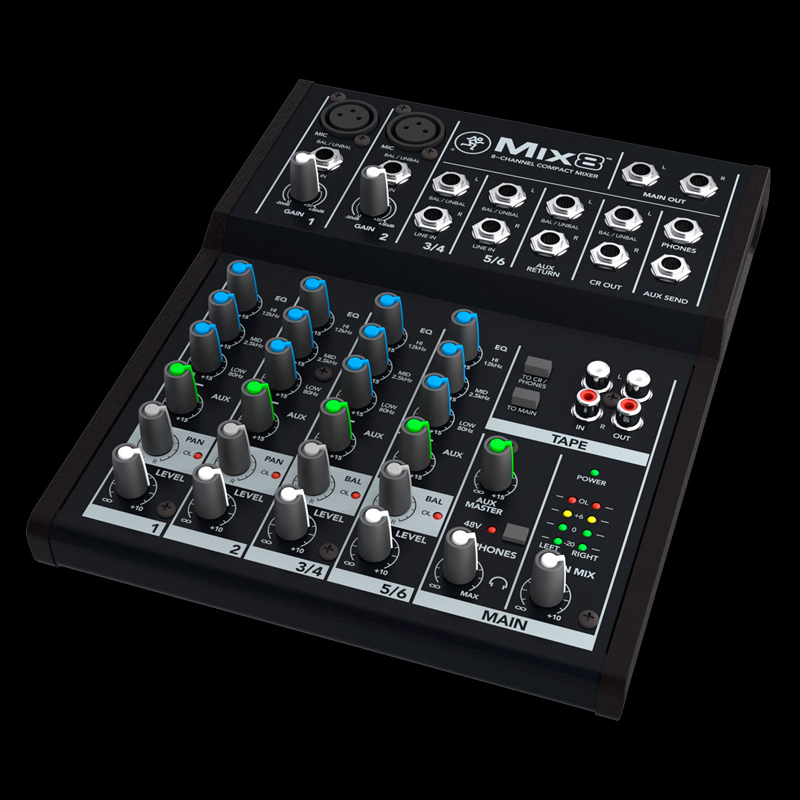

Mackie Mix8 8-Channel Compact Mixer

8-channel compact mixer

Take control of your audio with the Mackie Mix8 compact mixer. Despite its small size, this versatile 8-channel mixer is loaded with premium features, including two microphone inputs with our studio-quality preamps, a 3-band EQ for each channel, an RCA I/O path for recording and more.

WOULDN'T YOU RATHER MIX ON A MACKIE?

Mackie has brought professional-level compact mixers to the masses since we debuted the LM-1602 in 1988. The Mix8 is an 8-channel mixer that expands on our heritage of designing great gear that isn't unattainable for real working musicians and content creators. Featuring our low-noise preamps, a 3-band EQ and aux sends for each channel, an RCA I/O path for recording and separate volume controls for headphones and the main monitor, the Mix8 is a versatile workhorse for creators who need more control over their audio.

5, 8 and 12-channel compact mixers with proven high-headroom, low-noise performance

Mic/line inputs with studio-level audio quality

• Multi-band EQ with clean, precise tone shaping
• Pan, level and overload indication
• Phantom power for studio condenser mics
• Low cut filter (75 Hz) [Mix12FX]

Multiple stereo 1/4" line inputs

• +4/-10 dB and balance operation [Mix12FX]

One aux send with stereo 1/4" returns [Mix8]

12 great-sounding integrated effects including reverbs, choruses and delays [Mix12FX]

Dedicated stereo RCA inputs/outputs for playback or recording

Main L/R outputs

Headphone output

Stereo control room outputs [Mix8 / Mix12FX]

Rugged, reliable design built to last

Extremely compact and portable

Applications:

Live sound mixing, rehearsal spaces, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications and many, many more.

• (20 Hz - 20 kHz bandwidth, 150Ω source impedance)
• All outputs, master levels and channel levels off: -100 dBu
• All outputs, master levels unity, all channel levels off: -90 dBu
• All outputs, master levels unity, 1 channel level unity: -85 dBu

• (1 kHz, 20 Hz - 20 kHz bandwidth)
• Mic Input to Main Output: <0.01% @+4 dBu output

• (20 Hz-20 kHz bandwidth)
• Inputs to Outputs @ 1 kHz: -85 dB
• Main Mix Off @ 1 kHz: -80 dB

• Mic input to any output (gain @ unity): +0, -1 dB, 20 Hz to 30 kHz

• (Mic in to Insert Send out, max gain.)
• 150Ω termination: -125 dBu [Mix5, Mix8], -122 dBu [Mix12FX]

• (Mic in to Insert Send out, max gain.)
• 1 kHz: better than 70 dB

• Mic inputs (XLR): +18 dBu [Mix5], +19 dBu
• Aux return in: +16 dBu [Mix8]
• All other inputs: +21 dBu
• All outputs: +21 dBu

• Mic in: 2 kΩ [Mix5], 3.8 kΩ [Mix8, Mix12FX]
• All other inputs: 10 kΩ or greater
• Tape out: 1 kΩ
• Phones out: 22Ω
• All other outputs: 120Ω unbalanced, 240Ω balanced

• High Shelving: ±15 dB @ 12 kHz
• Mid Peaking: ±15 dB @ 2.5 kHz
• Low Shelving: ±15 dB @ 80 Hz
• Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz

• AC120V~, 60 Hz [US]
• AC230-240V~, 50/60 Hz [EU]
• AC220-230V~, 50/60 Hz [UK]
• AC220-240V~, 50/60 Hz [AU]
• AC220V~, 50 Hz [CN]
• AC127V~, 60 Hz [BZ]

• AC18V~ 600mA [US]
• (AC9V~ 300mA)x2 [EU]
• (AC9V~ 300mA)x2 [UK]
• (AC9V~ 300mA)x2 [AU]
• AC18V~ 600mA [CN]
• AC18V~ 600mA [BZ]

• Height: 3.3 in / 84 mm
• Width: 9.1 in / 231 mm
• Depth: 13.3 in / 338 mm
• Weight: 3.0 lb / 1.4 kg
